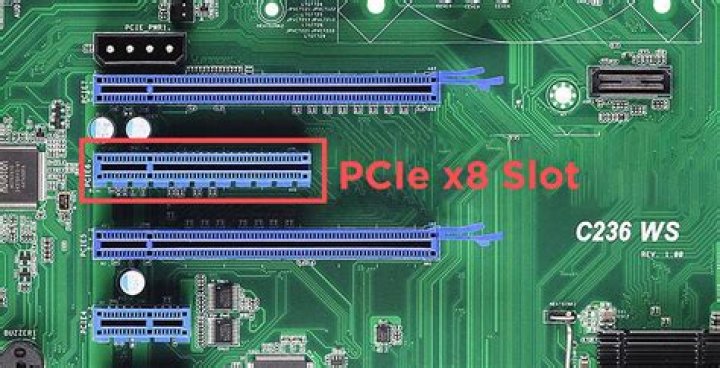

The answer is no. PCIe card and PCI/PCI-X cards are not compatible with each other due to their different configurations. In most cases, there are both PCI and PCIe slots on the motherboard, so please fit the card into its matching slot and do not misuse the two types.
How much power can a PCIe x1 slot provide?
75 W
They can use up to 75 W (3.3 V × 3 A + 12 V × 5.5 A), though the specification demands that the higher-power configuration be used for graphics cards only, while cards of other purposes are to remain at 25 W.
Do PCIe slots give power?
The PCI Express slot of the motherboard can provide up to 75 watts to the graphics card. 6-pin power connector can provide up to 75 watts. 8-pin power connector can provide up to 150 watts.
Does PCIe need power?
While most of the expansion cards like a network adapter, sound card, video capture card etc, do not require PCIe cables – as they get sufficient power from the slot itself – graphics cards, on the other hand, require extra power directly supplied from the PSU.
How do you provide watts of power to a PCIe expansion card?
These graphics cards can be powered by just the PCI Express x16 connector on the desktop board. These graphics cards usually require extra power, provided by both the PCI Express x16 connector and a 2×3 auxiliary power cable built into power supplies.
How much power can a PCIe x4 slot provide?
PCIe x4 and x8 cards can pull as much as 25W from the motherboard’s slot while x1 cards are limited to 10W unless configured as a ‘full-height’, ‘high-power card’ to tap the aforementioned 25W.
How much power does PCIe x16 provide?
75 watts
The PCI Express* x16 connector on Intel® Desktop Boards can deliver only up to 75 watts. These graphics cards can be powered by just the PCI Express x16 connector on the desktop board.
Does the PCIe Go to the GPU?
The graphics card should go into the first PCI Express x16 slot. However, lower slots are usually capable of running the card as well.
What is PCIe power on motherboard?
ok, closer reading in my MB manual says “The PCI-e power connector on the motherboard supplies extra power to the PCI Express slots. Connect the power supply to this connector when using two video cards.”
