the rectilinear theory of light

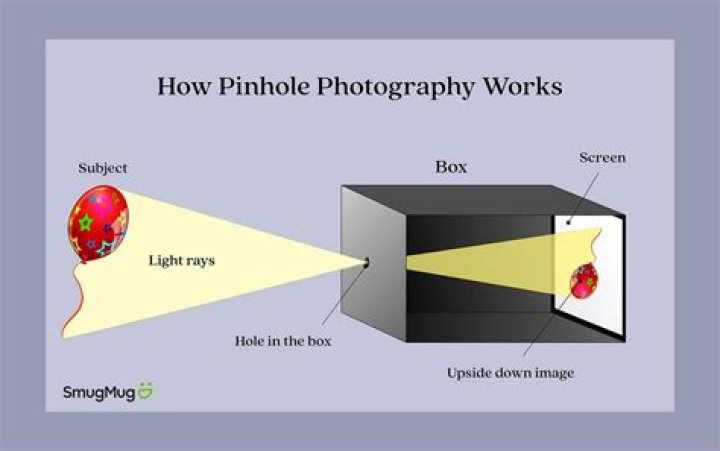

Pinhole cameras rely on the fact that light travels in straight lines – a principle called the rectilinear theory of light. This makes the image appear upside down in the camera.
What is the main disadvantage of a pinhole camera?
The disadvantages of the pinhole camera are as follows: The exposure time is long.
Do pinhole cameras create softer images?
Pinhole photography is lenseless photography. A tiny hole replaces the lens. Light passes through the hole and a latent image is formed in the camera on photographic paper. Therefore, the pinhole images are softer-less-sharp than pictures made with a lens.
What happens when light enters a pinhole camera?
Light rays will enter the hole and will create an image, but the image will be an inverted image. This inverted image which is created will be created on the opposite face of the box. This is how the pinhole camera works.
Why do pinhole cameras invert images?
An inverted image is formed in a pinhole camera because the light rays coming from the top and bottom of the object intersect at the pinhole. Thus, we get an upside down image in a pinhole camera due to linear propagation of light through the hole of the pinhole camera.
What is the advantages and disadvantages of pinhole camera?
You can only use a very small hole. The “focal length” of a pinhole camera is the distance from the hole to where the film is. The disadvantage is the pictures are out of focus and the exposure is a hit-or-miss thing… Pinhole cameras are good for experimentation, but you REALLY need access to a darkroom.
What advantage the pinhole camera has over the more usual lens camera?
Unlike a lens, a pinhole or other small opening can focus light coming from any distance. Because it’s such a small opening, it only allows light to come through in one place, and thus in only one direction from any particular source. So there’s no blur and everything is in focus.
How long do you expose a pinhole camera?
The measured time is increased 129 times, therefore the exposure time for the pinhole camera will be 2 seconds (rounded)….DETERMINING EXPOSURE TIMES FOR PINHOLE CAMERAS.
| exposure time measured for f 22 | time converted for pinhole aperture f 250 | time including Schwarzschild effect for Ilford FP4 Plus |
|---|---|---|
| 1/500 | 1/4 | 1/4 |
| 1/250 | 1/2 | 1/2 |
| 1/125 | 1 s | 2 s |
| 1/60 | 2 s | 5 s |
How do you make a good pinhole camera?
How to Make a Pinhole Camera
- Cut a square hole. Cut a square hole into the middle of one of your pieces of card stock.
- Tape foil over the hole. Tape a piece of aluminum foil over the hole.
- Poke a hole in the foil. Use your pin or paper clip to poke a small hole in the aluminum foil.
- Try it out.
- Get creative.
How is the image affected in a pinhole camera when another fine hole is made near the first pinhole?
If another pin hole is made near the first pinhole, two images are formed on the screen, one due to each of the two pinholes. If the holes are very close, the two images overlap each other which result, a blurred image.
