The voltage between phase and neutral is nominally 240V and the voltage of the phase or active conductor to earth is therefore also 240V (see Figure 7).
What is the voltage of line to ground?
Calculate the line to ground voltage using the formula: V (line to ground) = (KVA x 1000)/(I x 1.73). Continuing with the example: V (line to ground) = (20 x 1000)/(30 x 1.73) = 20000/51.9 = 385.4 volts.
What should voltage be from neutral to ground?
about 1.5V
In most office environments, a typical reading of neutral-to-ground voltage is about 1.5V. If the reading is high (above 2V to 3V), then the branch circuit might be overloaded.
What is the voltage to ground on a 480 volt Wye?
For a 480 volt system if it is a wye system you will have a 277 volts to all three phases neutral. Any other voltages to grounded conductor is going to be a delta system, but they can vary some depending on where it is grounded, or if it is grounded at all.
Why 11kV is 240v generally used?
The increase in voltage rating corresponds to increase in insulation. Increase in insulation will increase the cost. So,the electricity is generated at a voltage in between the higher &lower voltages i.e,11kV.So that the losses due to both voltages are minimum i.e,thickness & insulation is minimum.
How do you calculate phase to ground?
In a standard phase-to-phase connection, the variable that represents the grounding force is 1.73; it is divided from the voltage in order to compensate for the ground in a circuit. Using the same sample equation 12*5=60 volts, we can account for the ground by dividing 60 by 1.73, making the new voltage 34.68 volts.
Is 208 Wye or Delta?
Classification of Electrical Services
| Wye Line-to-Neutral Voltage | Wye or Delta Line-to-Line Voltage |
|---|---|
| 120 | 208 |
| 1201 | 240 |
| 230 | 400 |
| 240 | 415 |

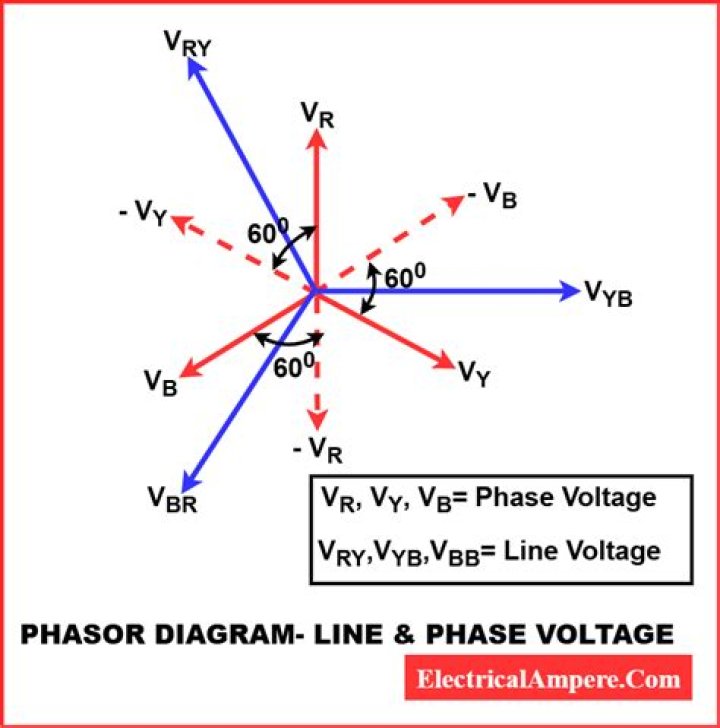

What is the relationship between a phase and the line voltage?
Line voltage and Phase voltage Relation. Line voltage and Phase voltage are directly proportional to each other. That means-When the line voltage increases, the phase voltage will also increase. When phase voltage increases, it will be reflected in the increase in line voltage. Line voltage and Phase voltage in a Star connection
What are the voltage levels in a single phase?
Most of us are familiar with the single phase voltage in our homes provided by the local utility. For the US, this is typically 120V. For single phase voltage, the voltage is expressed as a Line to Neutral voltage between two power conductors (plus a safety ground).
What is the difference between line voltage and phase voltage?
Line voltage (line-to-line voltage) in a polyphase system is the voltage between two given phases. On the other hand, Phase voltage is the voltage between the given phase and neutral. Note that neutral is available in star connection but not delta connection. Phase Voltage: It is the phasor potential of a phase wire with respect to neutral wire.
What are the 3 phase voltages in the USA?
A 3 Phase-Wye connected system consists of three hot lines, or phases, commonly referred to as X, Y, Z, a neutral, and a ground wire for a total of five wires in a power distribution cable. In North America the most common 3 Phase-Y voltages are either 120/208 VAC or 277/480 VAC, while internationally the most common 3 Phase voltage is 230/400 VAC.
