With masonry (at least here in the Kansas City Metro) the common sizes are 8 by 8, 8 by 13, 13 by 13, 8 by 17, and 13 by 17. Now they do make one size caps that fit all but they do not work properly, they’re a poor fit. My suggestion: get someone at the top of your chimney that knows how to measure for chimney caps.
How much does it cost to get a chimney capped?
Installing a chimney cap costs $300 on average, ranging from $75 to $1,000. The cap runs $35 to $550 depending on material and size. In most cases, you’ll pay $100 to $200 for installation. Without a chimney cap, all you have at the top of the flue is an open hole.
Do chimney caps affect draft?
If a chimney cap was not properly installed, it can shift or become easily damaged over time. This can affect airflow and drafting. Likewise, a chimney cap that does not fit properly or is not sized correctly can also cause draft issues.
How do I choose a chimney cap?
The general rule is to be sure the chimney cap lid is at least 5” above the top any of the flue tiles being covered, though a distance greater than 5” is even better. The best approach to ensuring that you get the right chimney cap is by calling on expert chimney technicians.

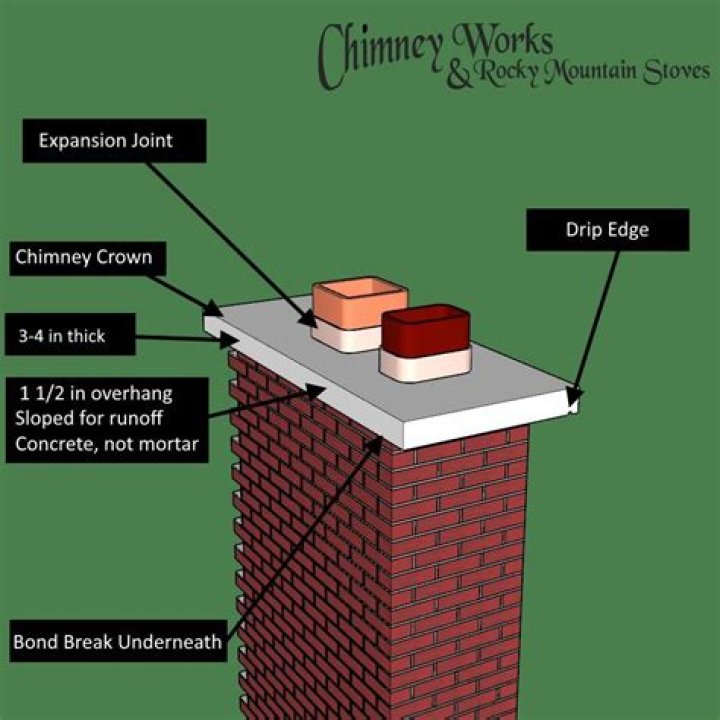

How much does it cost to replace a chimney crown?
Chimney crown replacement costs $1,000 to $3,000 on average, depending on the crown size, extent of damage, and accessibility. A chimney crown needs replacing if it has missing pieces or structural damage.
What’s the difference between a chimney cap and a flue cap?
When you are selecting a chimney cap, just remember the cap is for the flue. A wood framed chimney will require a chimney cap that will match the type of flue that is installed. When a flue pipe is put inside a wood framed chimney chase, this is known as an engineered chimney.
Do you really need a chimney cap?
Although a chimney will function without a chimney cap, it’s best to have one. Without a chimney cap, rain, snow, or other detritus can enter your chimney unhampered, causing damage to your house. It also keeps embers from escaping the chimney, preventing roof fires.
Do capped chimneys need to be vented?
A chimney needs a vent, not just at the top (provided by the cap) but also at the bottom. The air flow helps keep the chimney dry and ward off any condensation forming inside the stack. If there is no air flow, condensation will form inside the stack and will be soaked up by the old coal soot.
How do you make a chimney cap yourself?
How to Cap a Chimney Instructions
- Measure the flue.
- Select a chimney cap that fits the flue.
- Slide the cap over the flue or insert into flue depending on design of cap.
- Leave at least 6 inches of space between top of cap and flue edge.
- The cap should come with self-tapping screws.
