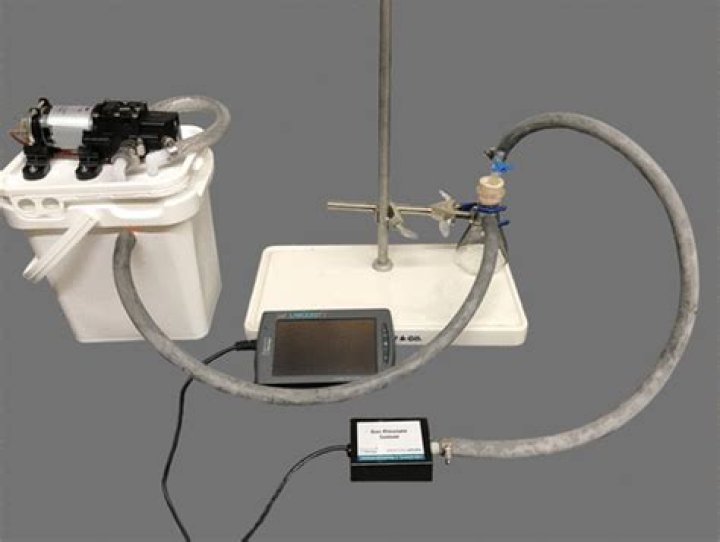

Water aspirators are designed to connect to a lab faucet and allow water to flow through a tube inside of the aspirator, thereby creating a vacuum. While this type of aspirator is inexpensive and has done a decent job for a very long time, you may want to think about upgrading to a vacuum pump aspirator.
How does a vacuum aspirator work?
An aspirator is basically a narrowing tube that hooks up to a hard-spraying water tap and has a sidearm fitting. The accelerating blast of water pulls the air in the tube along with it as it goes, creating a useful vacuum.
What is the purpose of the vacuum in vacuum distillation?
Distillation is the process of separating the components or substances from a liquid mixture. The process is based on differences in the relative volatility of the different components. In vacuum distillation, vacuum is used to lower the boiling point of the substances to be separated.
What is the vacuum distillation principle?
Vacuum distillation is the process of lowering the pressure in the column above the solvent to less than the vapor pressure of the mixture, creating a vacuum, and causing the elements with lower vapor pressures to evaporate off.
What is an aspirator vacuum pump?
A brass aspirator. A vacuum ejector, or simply ejector is a type of vacuum pump, which produces vacuum by means of the Venturi effect. In an ejector, a working fluid (liquid or gaseous) flows through a jet nozzle into a tube that first narrows and then expands in cross-sectional area.
What is the significance of water aspirator during filtration?
This vacuum aspirator creates the suction that pulls liquid through the filter and filter paper. hose is part of the filtration system and should be heavy enough to prevent pinching or collapse under external atmospheric pressure.
How ejector pump creates vacuum?
In an ejector, a working fluid (liquid or gaseous) flows through a jet nozzle into a tube that first narrows and then expands in cross-sectional area. The fluid leaving the jet is flowing at a high velocity which due to Bernoulli’s principle results in it having low pressure, thus generating a vacuum.
How do you carry out a vacuum distillation?
Vacuum Distillation Summary Grease all joints. Use a Claisen adapter, as solutions tend to bump under vacuum. Connect thick-walled hosing at the vacuum adapter to a trap, then to the vacuum source (water aspirator or vacuum pump). Turn on the vacuum first, before heating, to remove very volatile components.
What type of mixture is vacuum distillation useful?
Vacuum distillation is ideal for separating mixtures of liquids with very high boiling points. In order to boil these compounds, heating to high temperatures is an inefficient method.
Is a water aspirator a vacuum?
A water aspirator is an inexpensive and dependable source of moderate vacuum in the laboratory. As the water rushes past a side arm aperture, a partial vacuum is formed.
