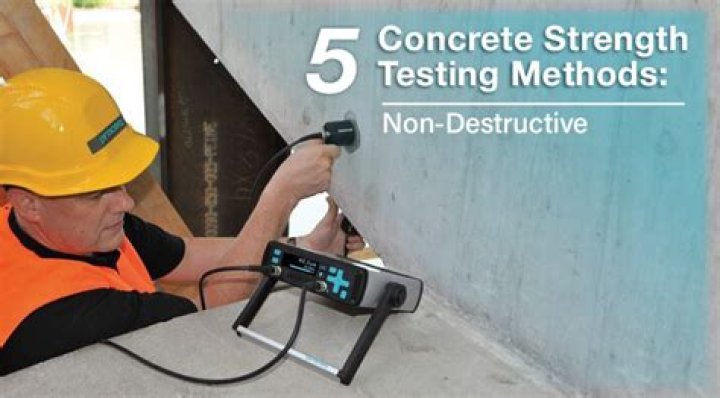

Non-destructive tests of concrete is a method to obtain the compressive strength and other properties of concrete from the existing structures. The standard method of evaluating the quality of concrete in buildings or structures is to test specimens cast simultaneously for compressive, flexural and tensile strengths.

What is destructive and non-destructive testing?

Destructive testing destroys or changes the part in some way such that even if it passes the test it is no longer fit for service. Examples might be tensile testing, 3 point bend test or macro sectioning. NDT does not destroy or change the part such that it is still fit for service if it passes the test.

What is NDT in civil engineering?

Non-destructive tests (NDT) are test methods which are used to examine the hardened concrete structure for their suitability for its intended use without interfering in any way with the integrity of the material or its suitability for service.

What are the non destructive testing methods?

The 8 Most Common NDT Methods

  • Visual NDT (VT)
  • Ultrasonic NDT (UT)
  • Radiography NDT (RT)
  • Eddy Current NDT (ET)
  • Magnetic Particle NDT (MT)
  • Acoustic Emission NDT (AE)
  • Liquid Penetrant NDT (PT)
  • Leak Testing (LT)

    How many tests are there in concrete?

    Compression Test and Slump Test for Quality Tests Among the tests mentioned above, the two major tests mainly considered as quality tests are the compression tests and slump tests. If necessary, it is desired to conduct fresh concrete temperature and hardened concrete density determination tests.

    What is the difference between NDE and NDT?

    Nondestructive evaluation (NDE) is a term that is often used interchangeably with NDT. However, technically, NDE is used to describe measurements that are more quantitative in nature. NDE may be used to determine material properties, such as fracture toughness, formability, and other physical characteristics.

    Is non-destructive testing a good career?

    Being an NDT inspector is a good career for people who do not want to work at a desk in an office every day. NDT inspectors often work in the field work or an industrial warehouse, using non-destructive methods to ensure materials and assembly parts are safe and meet safety standards.

    Why NDT testing is important?

    The purpose of NDT is to inspect a component in a safe, reliable, and cost effective manner without causing damage to the equipment or shutting down plant operations. This is in contrast to destructive testing where the part being tested is damaged or destroyed during the inspection process.

    What is the meaning of ultrasonic pulse velocity?

    An ultrasonic pulse velocity (UPV) test is an in-situ, nondestructive test to check the quality of concrete and natural rocks. Higher velocities indicate good quality and continuity of the material, while slower velocities may indicate concrete with many cracks or voids.

    What is the most common type of non-destructive testing?

    Many different NDT methods are available in the industry, each of them having their own advantages and limitations, but six of them are most frequently used: ultrasonic testing (UT), radiographic testing (RT), electromagnetic testing (ET), magnetic particle testing (MT), liquid penetrant testing (PT) and visual testing …

    What are the test required for concrete?

    Here are 6 common quality tests on concrete before and after completion of casting on site.

    • Slump test before leaving the batching plant and on arrival on site.
    • Compressive strength test.
    • Water Permeability test.
    • Rapid Chloride Ion Penetration Test.
    • Water Absorption Test.
    • Initial Surface Absorption Test.

    What are the types of slump?

    There are three types of slump that may occur in a slumps test, namely, true slump, shear slump and collapse slump.

    Which NDT method is best?

    While many methods of nondestructive testing can detect failure-predictive flaws in welds, the most efficient, effective method is phased array ultrasonic testing.

    Where is NDT used?

    NDT plays a crucial role in everyday life and is necessary to assure safety and reliability. Typical examples are found in aircraft, spacecraft (shuttle), motor vehicles, pipelines, bridges, trains, power stations, refineries, buildings and oil platforms which are all inspected using NDT.

    Is NDT test hard?

    So, yes initial days are tough in NDT but once you got thorough experience, you will get enough. Talking about particular testing, different problem associated with them are: UT: Interpretation is difficult at initial time.

    How do you become a non-destructive tester?

    Many positions require a high school diploma or GED certification at the level where the job will place them (for example, level, I, II, or III), experience with various materials, and a background in engineering, aerospace, and related procedures.

    What are the objectives of NDT?

    What purpose ultrasonic pulse velocity method is used?

    Ultrasonic Pulse Velocity (UPV) testing is used to determine the integrity of structural concrete. The UPV method can also be used on structural elements to provide an indication of material quality.

    What is ultrasonic test for concrete?

    An ultrasonic pulse velocity (UPV) test is an in-situ, nondestructive test to check the quality of concrete and natural rocks. In this test, the strength and quality of concrete or rock is assessed by measuring the velocity of an ultrasonic pulse passing through a concrete structure or natural rock formation.

    What are destructive testing methods?

    This includes different types of destructive testing methods such as tension tests, bend tests, Charpy impact tests, Pellini drop weight testing, peel tests, crush testing, pressure and fracture testing.
