A low-frequency oscillator (LFO) is an electronic oscillator that generates a frequency below approximately 20 Hz. This term is typically used in the field of audio synthesizers, to distinguish it from an audio frequency oscillator….Negative-resistance oscillator.
| Device | Frequency |
|---|---|
| Gyrotron tube | ~600 GHz |
What is the frequency range of RC oscillator?
1Hz to 10MHz
Frequency of RC Phase Shift Oscillator We discussed that these oscillators are capable of generating audio frequencies of range 1Hz to 10MHz. this oscillator consists of a converting amplifier with a feedback network that will generate a phase shift of 180 degrees.
What is the major disadvantage of a twin-T oscillator?
Disadvantages: Its major disadvantage is slow settling after a step change in the frequency or amplitude. Advantages: The Twin-T oscillator works very well at one frequency. Disadvantage: The main problem with the circuit is that, unlike the Wien-bridge oscillator, it cannot be adjusted over a large frequency range.
What is the frequency of oscillation of Wien bridge oscillator?
What is the frequency of oscillation of wein bridge oscillator? Explanation: The frequency of oscillation of wein bridge oscillator is fo=2πRC.
What is the frequency of an oscillator that repeats its motion every 10 seconds?

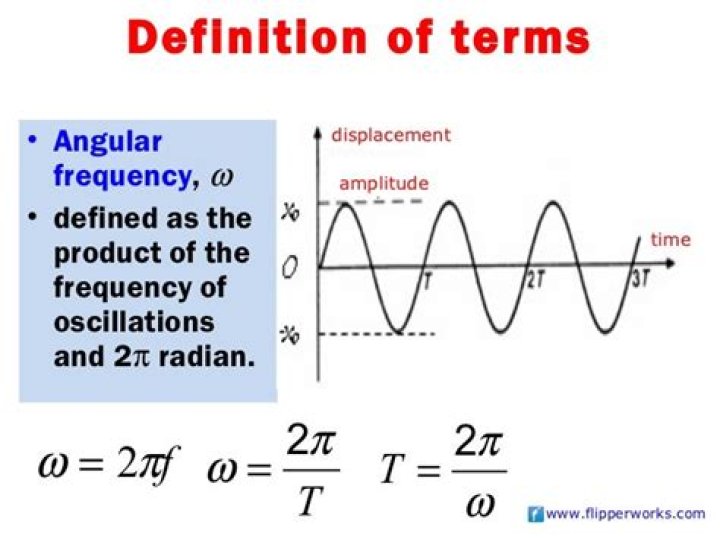

The frequency is the number of complete cycles per second. The unit of one cycle per second is called a hertz (Hz). Something that completes ten cycles each second has a frequency of 10 Hz. A guitar string playing the note A vibrates back and forth at a frequency of 220 Hz (Figure 23.3).
What is Twin T oscillator?
Twin-T Oscillators are another type of RC oscillator which produces a sinewave output for use in fixed-frequency applications similar to the Wein-bridge oscillator. The twin-T oscillator uses two “Tee” shaped RC networks in its feedback loop (hence the name) between the output and input of an inverting amplifier.
What is the maximum operating frequency of RC oscillator?
The oscillator itself can be tuned to operate in the frequency range of 20-100 MHz using digital control signals and this fits the current sensor implementation.
How is oscillator different from amplifier?
The main difference between an amplifier and oscillator is that amplifier is a circuit that amplifies the input signal and an oscillator generates AC waveforms of a particular frequency that acts as a source for an electronic circuit. Oscillators generate periodic signals.
What is the need for twin T network?
A twin-T oscillator circuit is required to produce a 1kHz sinusoidal output signal for use in an electronic circuit. If an operational amplifier with a gain ratio of 200 is used, calculate the values of the frequency determining components R and C, and the values of the gain resistors.
What is a twin T oscillator?
Which is a fixed frequency oscillator?
Crystal oscillators are fixed frequency oscillators with a high Q-factor. It operates on the principle of the inverse piezoelectric effect in which alternating voltage applied across the crystal surfaces causes it to vibrate at its natural frequency.
