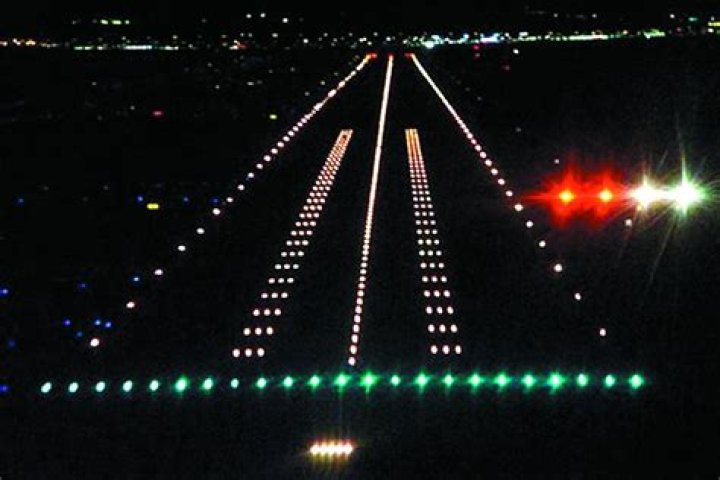

The runway edge lights are white, except on instrument runways yellow replaces white on the last 2,000 feet or half the runway length, whichever is less, to form a caution zone for landings.
What do the colored lights on a runway mean?
The lights marking the ends of the runway emit red light toward the runway to indicate the end of runway to a departing aircraft and emit green outward from the runway end to indicate the threshold to landing aircraft. Live from the Flight Deck.
Where do amber lights start on runway?
Runway edge lights are another place where you’ll find amber lights. Edge lights mark the edges of the runway. These lights are white until the last 2000 feet when they change to amber. Green lights mark the beginning of the runway.
What do the blue lights on a runway mean?
The blue taxi lights are easy to spot from the terminal and are often the first airport lights seen by passengers. Blue taxiway lights are typically illuminated after dark and during bad weather. For many airports, the blue lights are all that is necessary to mark the taxiways.
Why are runway markings white?
Designation markings The markings are Arabic numerals 60 to 63 feet tall, painted in white, like all runway markings—the color chosen for high contrast on paved surfaces. Located on the landing end of the runway, these numbers indicate the approximate magnetic orientation of the runway from the approach direction.
How far apart are taxiway lights?
Taxiway edge lights are spaced at a minimum of 50 to a maximum of 200 feet apart. On straightaways the spacing is typically 200 feet. These lights can be closer together at taxiway intersections.
What kind of lights identify the runway threshold?
Runway End Identification Light Frequently named as Runway Threshold Identification Light (or RTIL), this is a white flashing light, unidirectional, that identifies beginning of a runway. Unlike approach lights, there only two RTIL lights installed per one side of a runway.
What are the color of the runway markings and hold lines?
What does the instrument hold like look like? Two parallel yellow lines spaced 4 feet apart, between these two lines and perpendicular to them, there are sets of two parallel yellow lines. The letters INST are written above the instrument hold line.
What are the 4 lights next to the runway?
The PAPI is a light array positioned beside the runway. It normally consists of four equi-spaced light units color-coded to provide a visual indication of an aircraft’s position relative to the designated glideslope for the runway.
