The Schering bridge is an electrical circuit used for measuring the insulating properties of electrical cables and equipment. It is an AC bridge circuit, developed by Harald Schering. It has the advantage that the balance equation is independent of frequency.

How Schering bridge is used for the measurement of unknown capacitor?

Schering bridge is a type of AC bridge that is used to measure the dissipation factor (dielectric loss) or phase angle and capacitance. When the bridge is in the balanced condition, zero current passes through the detector, which shows that the potential across the detector is zero.

What is the balanced condition of Schering bridge?

This happens when the voltages at points A and B are equal, in which case the bridge is said to be “balanced”. In this state, the followings hold: R3 = C1*R2/C2 and C3 = R1*C2/R2. Note that the balancing of a Schering Bridge is frequency-independent.

How Schering bridge is used for measurement of power factor?

Explanation: The power factor of the RC combination in a Schering bridge is given by the relation p.f. = cos∅x = Rx⁄Zx .

What is Schering bridge and what are the advantages of Schering bridge?

Schering Bridge is an electrical circuit used for measuring the insulating properties of an electrical cable and equipment. It is an AC bridge circuit developed by Harald Ernst Malmsten Schering (25th November 1880 – 10th April 1959). It has the greatest advantage that the balanced equation is independent of frequency.

What is the advantages of Schering bridge?

Advantages of Schering Bridge 1. The balanced equation obtained is independent of frequency terms. 2. By using fixed values of C2, R4, the dial of R3 may be calibrated to read the capacitance (C1) directly.

What are the limitations of Schering bridge?

The LV Schering bridge suffers from the following disadvantages,

  • The calibration for the dissipation factor is useful only for one value of frequency.
  • The detector used is not so sensitive.
  • It is quite difficult to obtain a balanced condition.

How do you find the dissipation factor of a Schering bridge?

Dissipation factor D1 = ωC4R4 and in case the frequency is fixed the dial of capacitor C4 can be calibrated to read the dissipation factor directly. Let us say that the working frequency is 50 Hz and the value of R4 is kept fixed at 3,180 Ω. Dissipation factor, D1 = 2π x 50 x 3180 x C4 = C4 X 10⁶.

What is the working principle of Schering bridge?

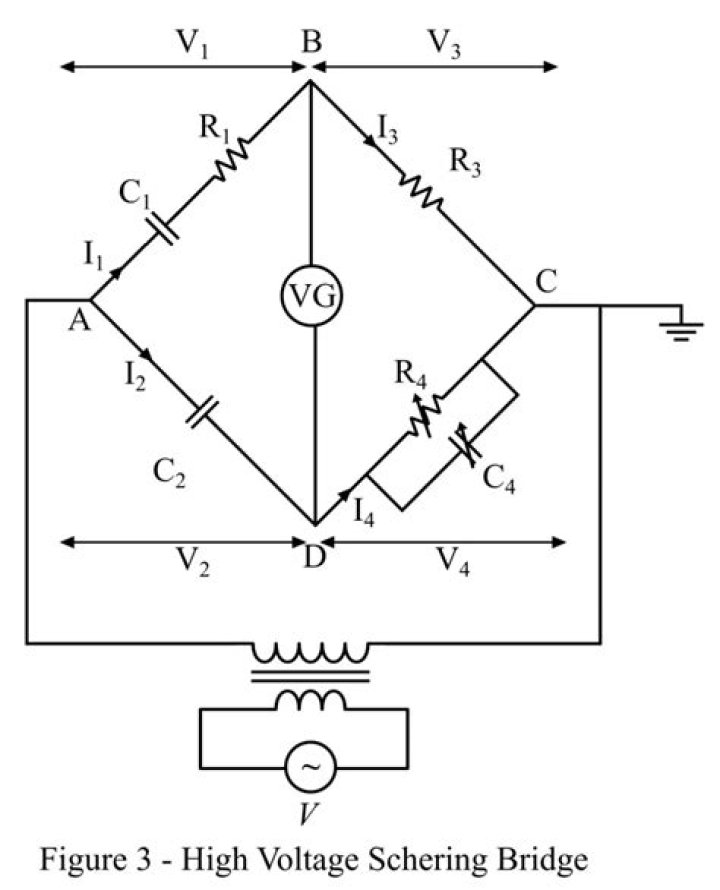

The Schering bridge works on the principle of balancing the load on its arm. Let, C1 – capacitor whose capacitance is to be determined, r1 – a series resistance, representing the loss of the capacitor C1.

Why do we use Schering bridges?

The Schering bridge use for measuring the capacitance of the capacitor, dissipation factor, properties of an insulator, capacitor bushing, insulating oil and other insulating materials. It is one of the most commonly used AC bridge. The Schering bridge works on the principle of balancing the load on its arm.

What are disadvantages of Schering bridges?

The LV Schering bridge suffers from the following disadvantages, The calibration for the dissipation factor is useful only for one value of frequency. In order to use it for other frequencies, a correction has to be made by multiplying with the frequency ratio. The detector used is not so sensitive.

What are the limitations of Maxwell bridge?

The disadvantages of a Maxwell Bridge are: The variable standard capacitor is very expensive. The bridge is limited to measurement of low quality coils (1 < Q < 10) and it is also unsuitable for low value of Q (i.e. Q < 1) from this we conclude that a Maxwell bridge is used suitable only for medium Q coils.
