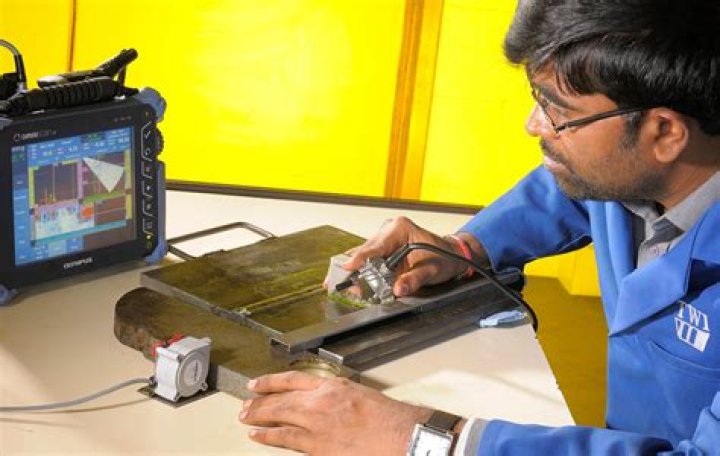

Phased Array is an ultrasonic testing technique that uses specialized multi-element “array” transducers and pulses those elements separately in a patterned sequence called “phasing”. This phasing sequence allows wave steering, focusing, and scanning. This is all performed electronically.
What are the two basic ultrasonic inspection techniques?
Ultrasonic testing can be performed using two basic methods – pulse-echo and through-transmission. With pulse echo testing, the same transducer emits and receives the sound wave energy.
What is difference between UT and PAUT?
A PAUT transducer uses multiple elements during a scan. Beams are emitted sequentially at multiple angles allowing PAUT to create a more detailed scan. Other UT methods, on the other hand, use a single probe to analyze an asset. By emitting multiple beams, PAUT allows for the inspection of even the most complex assets.
When do you use a phased array?
Phased arrays are used for a wide variety of inspection and measurement applications, and they can be used for any job done by conventional ultrasonics. For example, phased arrays are used to detect and image defects including cracks, voids, and pits caused by corrosion.
What is the principle of PAUT?
An ultrasonic beam is focused using time delays, which are applied to the elements to create a constructive interference in the wavefronts. This interference allows the energy to be focused at any depth and angle in the test specimen.
What is ultrasonic technique?
Ultrasonic Testing (UT) is a group of nondestructive examination (NDE) techniques that use short, high-frequency ultrasonic waves to identify flaws in a material. They generally work by emitting waves into a material. By measuring these waves, the properties of the material and internal flaws can be identified.
What is the difference between TOFD and phased array?
The difference between PAUT and TOFD lies in the response of the physical principle (Ultrasound) that generates any discontinuity in the material. PAUT is based on the reflection of an ultrasonic wave and TOFD is based on the response of the diffracted wave at the tip of an indication.
How does a phased array transducer work?
In the case of phased array ultrasound testing, a piezoelectric crystal converts electric energy into ultrasound energy. Phased arrays combine several ultrasound transducers that fire individual elements in a specific sequence to direct the soundwave in the desired direction.
How does phased array transducer work?
Phased Arrays are arrays of ultrasound transducers that fire individual elements on the array in a specific sequence in order to direct the sound wave in a specific direction.
