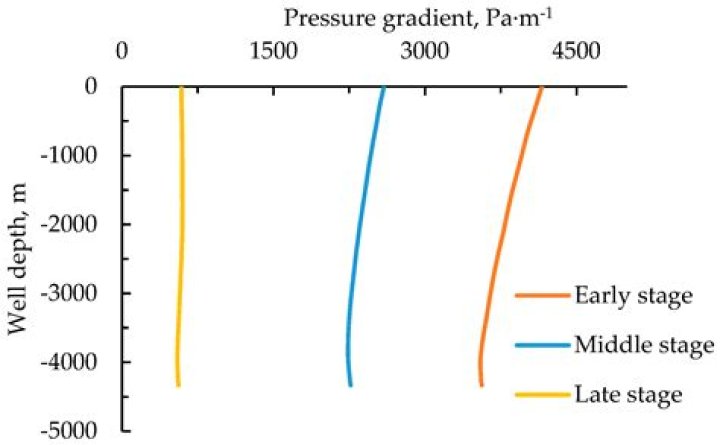

The hydrostatic pressure gradient is the rate of change in formation fluid pressure with depth. In the U.S. Gulf Coast, a gradient of 0.465 psi/ft is common.
How do you calculate oil pressure gradient?
Calculate the average Gradient:
- Oil density = 141.5 / (131.5 + 36) = 0.845.
- Average density = 1.04×0.7 + 0.845×0.3 = 0.9815.
- Average Gradient = 0.433 x 0.9815 = 0.425 psi/ft.
What is the normal pressure gradient?
approximately 10.53 kPa/m
When the hydrostatic pressure gradient for any region is approximately 10.53 kPa/m, it is known as the normal pressure gradient, abnormal pressure gradients may be either abnormally low or high.
What is a BP gradient?
A blood pressure gradient refers to a difference in the blood pressure between two points in the vasculature. Note that the absolute value of blood pressure at these points is not relevant to blood flow. The only value of importance is the relative difference in pressure between these two points.
What is positive and negative hydrostatic pressure gradient?
When the force is exerted towards the gravity it is known as positive hydrostatic pressure. When the force is exerted opposite to gravity it is known as negative hydrostatic pressure. When the pressure change is due to depth it is known as hydrostatic pressure gradient.
What is abnormal pressure in oil field?
A subsurface condition in which the pore pressure of a geologic formation exceeds or is less than the expected, or normal, formation pressure. Excess pressure, called overpressure or geopressure, can cause a well to blow out or become uncontrollable during drilling.
What is Echo pressure gradient?
Pressure gradients quantify severity of stenotic lesions and can estimate unknown pressures from known pressures. Pressure and flow are integrally related but neither can be measured dir- ectly with echocardiography. Pressure (P) can be estimated from velocity (V) using the simplified Bernoulli equation: P=4V2.
How does pressure gradient affect blood pressure?
Like all fluids, blood flows from a high pressure area to a region with lower pressure. Blood flows in the same direction as the decreasing pressure gradient: arteries to capillaries to veins. The rate, or velocity, of blood flow varies inversely with the total cross-sectional area of the blood vessels.
Why root pressure is called positive hydrostatic pressure?
When the force is exerted towards the gravity it is known as positive hydrostatic pressure. When the force is exerted opposite to gravity it is known as negative hydrostatic pressure. Complete answer: When the force is exerted towards the gravity it is known as positive hydrostatic pressure.
