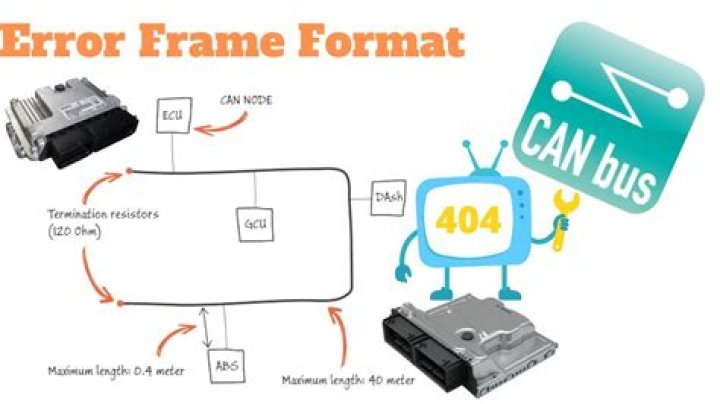

An error frame initiates the termination of a faulty data or remote frame. This is actually accomplished through an intended violation of the CAN standard. An error frame signals the detection of an error condition by a receiving or transmitting node (see also Chapter 8 – Error Detection and Fault Confinement).
CAN VS can open?
Therefore, CAN-Bus defines the physical layer and link layer, while CANopen defines the application layer on the basis of can-bus, and specifies the conventions used by users, software and network terminals for information exchange. …
CAN I receive an error counter?
In essence, a transmitter detecting a fault increments its Transmit Error Counter faster than the listening nodes will increment their Receive Error Counter. Using the error counters, a CAN node can not only detect faults but also perform error confinement.
What causes CAN error frames?
The error frame is a special message that violates the formatting rules of a CAN message. It is transmitted when a node detects an error in a message, and causes all other nodes in the network to send an error frame as well.
CAN PDO vs SDO?
Process Data Object (PDO) is used to transmit the application data. Service Data Object (SDO) is used to gain access to all device parameters. SDO is used for direct device-to-device communication. Error Control is used to validate that any device is working proper in terms of CANopen communication.
CANopen error codes?
31.7. 8.1 Error Code – CANopen
| Error Code | Error Message | Description |
|---|---|---|
| 006 | Data obtaining address error | The driver information is not correct. The controller information is not correct. |
| 007 | Driver not registered | Driver is not registered. |
| 008 | PDO Settings Error | PDO Settings Error |
| 009 | Invalid terminal type | Invalid terminal type |
CAN error frames?
The error frame is a special message that violates the formatting rules of a CAN message. It is transmitted when a node detects an error in a message, and causes all other nodes in the network to send an error frame as well. The original transmitter then automatically retransmits the message.
CAN error confinement rules?
CAN Error Confinement Rules
- When a receiver detects an error, the REC will be increased by 1, except when the detected error was a Bit Error during the sending of an Active error Flag or an Overload Flag.
- When a receiver detects a dominant bit as the first bit after sending an Error Flag, the REC will be increased by 8.
CAN bit stuffing error?
A Stuff Error occurs whenever 6 consecutive bits of equal value are detected on the bus. Whenever a transmitting device detects 5 consecutive bits of equal value, it automatically inserts a complemented bit into the transmitted bit stream. This stuff bit is detected and automatically removed by all receiving devices.
