US building codes require that the space between balusters be no more than four inches—assuring that small children can’t slip through or get stuck between them. They must also be able to resist up to 50 pounds of pressure exerted over a 1-square foot area.
How far apart should deck balusters be spaced?
4 inches

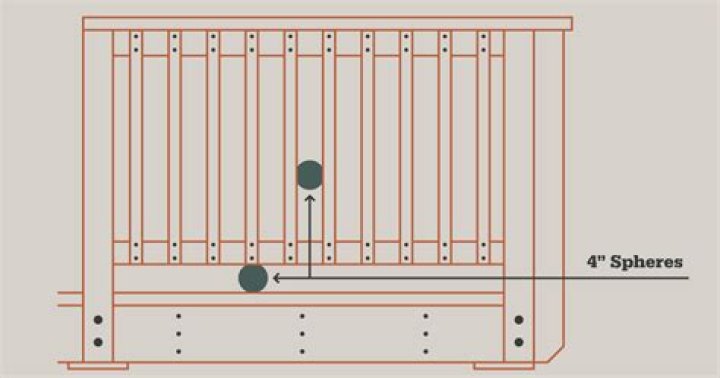

Balusters are the vertical guards that support the handrail. They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 pounds of pressure exerted over a 1-sq.
What is the code for interior railings?
In residential applications, the guard height minimum is 36″. On a stair, since handrail must be between 34″ and 38″, the handrail and the top of the guard can be one and the same. In commercial applications, the IBC requires a minimum height of 42″.
How do you count balusters?
To determine the correct number of spindles for the guard, measure the length of the railing. Then, count the number of vertical guards and the measure the thickness of each. Next, multiply the number of spindles by the thickness, and then subtract this number from the length of the railing.
How do you work out the spacing between pickets?
Divide the total spaces area by the number of pickets plus one: 33 divided by 18 equals 1.83 (inches). This is the precise width of each space between pickets (and between the pickets and posts).
How do you work out the spacing between spindles?
You should have one more spindle spacing than there are spindles. So if you have 10 spindles, take the measurement from step 2 and divide it by 11, for example. This will give you the horizontal distance apart each spindle spacing will be.
Are horizontal balusters code?
Removing the “ladder effect” from code restrictions means that beautiful Cable Railing, Pipe Railing with multiple horizontal lines, and Horizontal Railing from Superior Aluminum all are code-compliant, safe options that meet the ICC.
