A metal angle section with two legs of unequal length.
What is an unequal leg angle?
Unequal angle bars represent a broad product line of bar-shaped building elements. They do have parallel legs and their tolerances are defined by ASTM A 484, the laser fused execution has additionally the product standard defined by ASTM A1069.
What sizes do angle iron come in?
Angle iron can be found in lengths of 20′ or 40′ and angles of . 5″ X . 5″ X . 125″ through incremental increases to 8″ X 8″ X 1″.

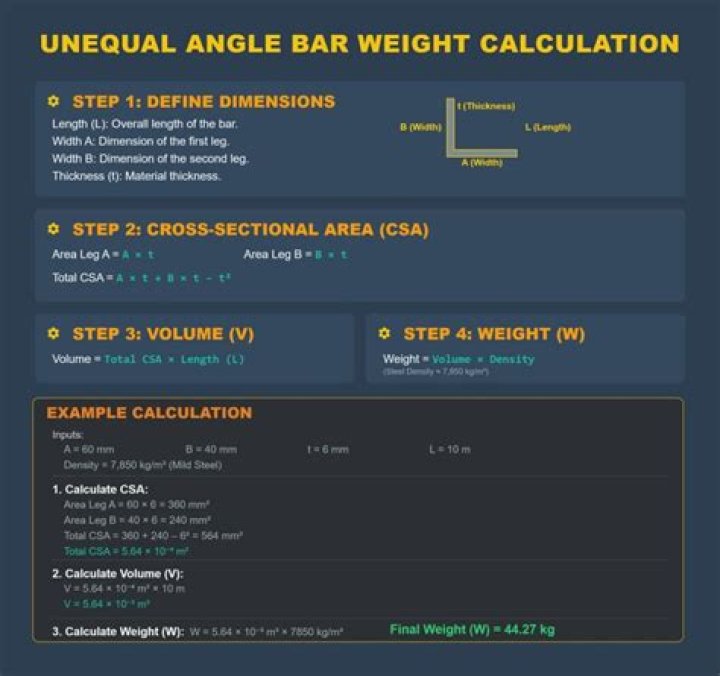

How do you find the uneven angle weight?
To calculate the weight of a running meter of unequal angles, a formula similar to the formula equal angles is used, except that the width of the shelves is not equal: ρ у = [(A + Bt) · t + (1-π / 4) · (r2int – 2 · r2external)] · ρ; where t is the thickness of the shelves; A – the width of the larger flange; B is the …
What are equal angles used for?
Practically speaking, equal angle bars can be used for a variety of purposes; their most common uses are in plant and machinery depots, railway tracks and in naval vessels. They also make very robust support frames in smaller-scale building projects, and two adjoining walls in a corner.
What is equal angle bar?
Equal angle bars represent a broad product line of bar-shaped building elements. They do have parallel legs and their tolerances are defined by ASTM A 484, the laser fused execution has additionally the product standard defined by ASTM A1069.
What is angle steel?
Steel Angles are the most basic type of roll-formed steel. They are formed by bending a single angle in a piece of steel. Angle Steel is ‘L’ shaped; the most common type of Steel Angles are at a 90 degree angle. The larger the steel angle, the more weight and stress it can bear.
Is angle iron mild steel?
Mild Steel Angle Iron is a length of steel or iron that is bent at a right angle, commonly used for making frames, racks and for construction purposes. We stock Equal Angles or Unequal Angles, ranging in a variety of sizes. Angle sections are stocked in either 1.5m lengths, 3m lengths or 6m lengths.
How do you calculate MS angle in KG?
Unit weight of ms angle per meter
- first we calculate volume of flange of MS angle. Size of ms angle = 75×75×6 mm. Width of flange = 75 mm =0.075 m.
- volume of web. Size of ms angle = 75×75×6 mm.
- total volume of MS angle. Total volume = volume of flange+ volume of web.
- weight of ms angle.
