A vector quantity whose magnitude is proportional to the amount or speed of a rotation, and whose direction is perpendicular to the plane of that rotation (following the right-hand rule).
How do you find the rotational vector?
The formula for finding the rotation matrix corresponding to an angle-axis vector is called Rodrigues’ formula, which is now derived. Let r be a rotation vector. If the vector is (0,0,0), then the rotation is zero, and the corresponding matrix is the identity matrix: r = 0 → R = I . such that p = r.
Is rotational motion a vector?
Angular momentum and angular velocity have both magnitude and direction and, therefore, are vector quantities. The direction of these quantities is inherently difficult to track—a point on a rotating wheel is constantly rotating and changing direction.
Is finite rotation a vector explain?
The finite rotation of a body about an axis is bot a vector because the finite rotations do not obey the laws of vectors addition. However, the small rotation of a body ( i.e. samall angle of rotation) is a vector quantity as it obeys the law of vecors addition.
Is rotation a scalar or vector?
-rotation. This non-commuting algebra cannot be represented by vectors. So, although rotations have a well-defined magnitude and direction, they are not vector quantities.

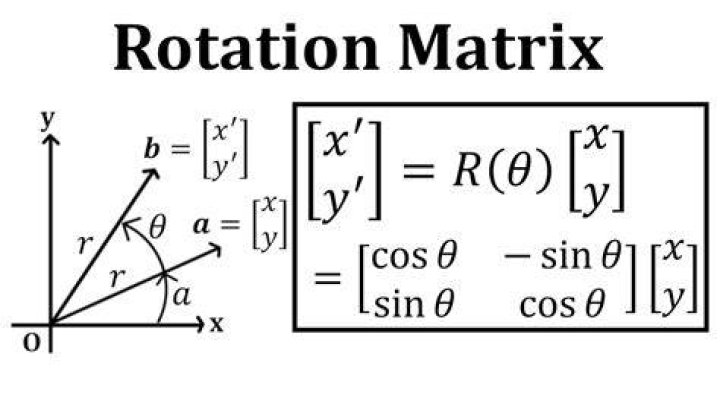

How do you find the rotational matrix?
The trace of a rotation matrix is equal to the sum of its eigenvalues. For n = 2, a rotation by angle θ has trace 2 cos θ. For n = 3, a rotation around any axis by angle θ has trace 1 + 2 cos θ. For n = 4, and the trace is 2(cos θ + cos φ), which becomes 4 cos θ for an isoclinic rotation.
How do you rotate a vector clockwise?
Rotating a vector 90 degrees is particularily simple. (x, y) rotated 90 degrees around (0, 0) is (-y, x) . If you want to rotate clockwise, you simply do it the other way around, getting (y, -x) .
Are all rotations vectors?
-rotation. This non-commutative algebra cannot be represented by vectors. We conclude that, although rotations have well-defined magnitudes and directions, they are not, in general, vector quantities.
Does a vector have locations in space?
Generally speaking, a vector has no definite locations in space. This is because a vector remains invariant when displaced in such a way that its magnitude and direction remain the same.
What is meant by axial vector?
Axial vectors are those vectors that represent rotational effect and act along the axis of rotation. Eg: Angular velocity, torque, angular momentum etc are axial vectors. Generally, axial vectors emerge from odd numbers of cross products, and regular vectors from even numbers.
