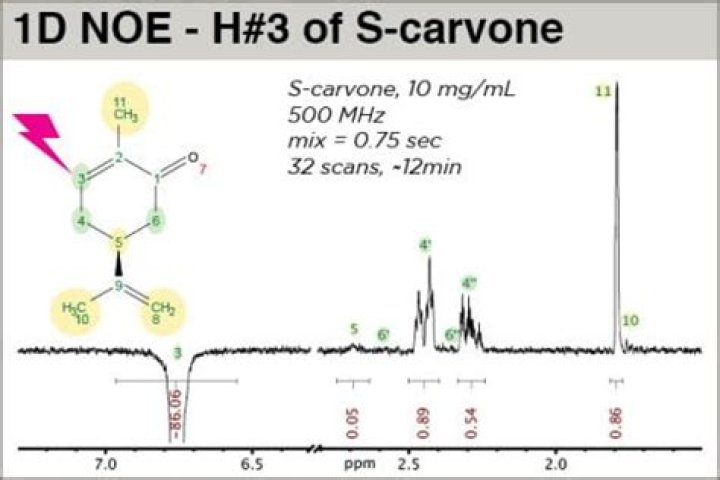

1D NOESY spectra of small molecules are displayed with the large excited peak phased negative and the NOE peaks phased positive. NOE peaks are weak – typically less than 2% of the intensity of the excited peak, often as little as 0.01%. It is typically set to around 600 msec for small molecules.
Is NOESY 1D or 2D?
2D NOESY has the advantage of using hard pulses to excite all signals at once, more efficient and sensitive. It is also more reliable in distinguishing real NOE peaks from artifacts because of the automatic crosspeak symmetry present.
What is NOE NMR?
A phenomenological definition of the NOE in nuclear magnetic resonance spectroscopy (NMR) is the change in the integrated intensity (positive or negative) of one NMR resonance that occurs when another is saturated by irradiation with an RF field. …
What is mixing time in Noesy?
Mixing times The following are guidelines: 1) small molecules :0.5 -1 or more seconds. Start with 0.5 sec. 2) medium size molecules 0.1 -0.8 sec.
What is Tocsy?
TOCSY (Total Correlation Spectroscopy) creates correlations between all protons within a given spin system, not just between geminal or vicinal protons as in COSY. Transfer is interrupted by small or zero proton-proton couplings. The presence of hetero-atoms, such as oxygen, usually disrupts TOCSY transfer.
What is the NOE enhancement factor?
The NOE is characterized by an enhancement factor: Where I0 is the intensity of a peak without irradiation of the other spin, and I with irradiation.
What does a COSY NMR tell you?
¹H-¹H Correlation Spectroscopy (COSY) shows the correlation between hydrogens which are coupled to each other in the ¹H NMR spectrum. The ¹H spectrum is plotted on both 2D axes. The cross-peaks (not on the diagonal) that are symmetric to the diagonal show the COSY correlations.
What is Roe NMR?
The Nuclear Overhauser effect (NOE) and rotating-frame Overhauser effect (ROE) techniques are powerful NMR methods that have attracted great interest because they provide precise information about the three dimensional spatial structure of the molecules, as well as about possible chemical reactions and interactions.
What is COSY used for?
H-1H COSY (COrrelated SpectroscopY) is a useful method for determining which signals arise from neighboring protons (usually up to four bonds). Correlations appear when there is spin-spin coupling between protons, but where there is no coupling, no correlation is expected to appear.
