True closed decks are some EJ20Gs (about 10%), the EJ22T (100%) and the EJ22 from the 22B. Except for the 22B, all the closed decks have oil squirters, are phase 1 and #3 thrust.

Is closed deck better?

Since a closed deck engine has more support near the head where the high pressure of combustion is at it’s greatest, these engines are simply stronger where it counts. A closed deck engine is nice, but when modern materials and casting allow for cheaper open deck designs they’re few an far between.

Do I need a closed deck?

Closed deck inserts are essential for high power and boost engines, and setups running NOS or other highly volatile race fuels. If you’re after a robust block to handle high power applications reliably and consistently, a fully closed deck engine case is the way to go.

Is EJ257 closed deck?

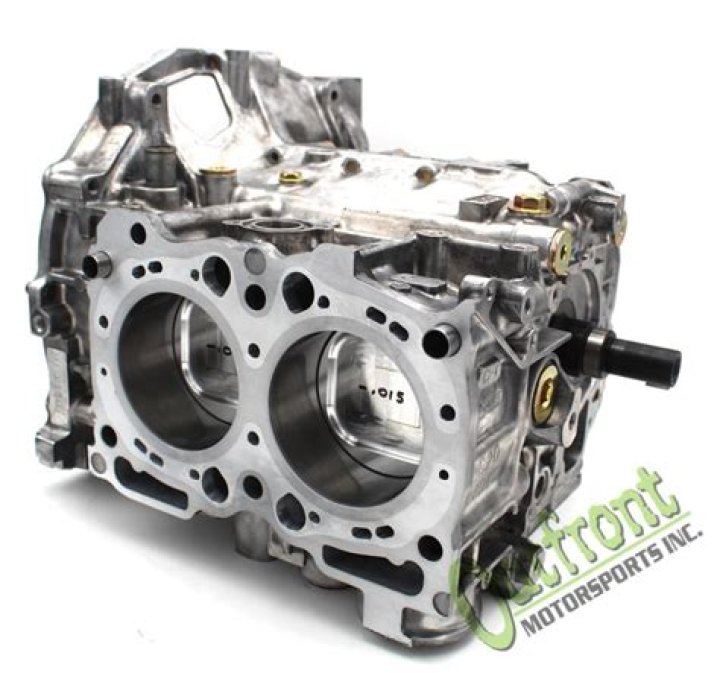

Outfront’s V4 Closed Deck EJ257 – Race This Is The New V4 Closed Deck EJ257 With Forged Internals. This supports 800 WHP and 30+ PSI of boost.

Is the FA20 open deck?

IAG Stage 2.5 FA20 Closed Deck Short Block.

Why are some engines open deck?

Open deck designs have the coolant channel cast into the top of the deck. This design improves cooling and reduces hot spots in the cylinder but provides much less strength and rigidity at the top of the cylinder.

Is the h22a4 closed deck?

h22a4 = open deck. They used open deck for better cooling purposes. having an open or closed deck with boost really isnt going to matter until you really start pushing MAJOR power.

Is the N54 a closed deck?

To show the difference- this is an open deck block, how the N54 came stock: This engine was a mild build with only JE pistons and head studs. Typically we recommend this on anything from completely stock daily drivers to about 450-500 rear wheel horsepower.

What is a closed deck?

A closed deck, is the opposite of an open deck and it’s nearly fully closed. I say nearly fully closed because the deck surface is only drilled for the head fasteners, coolant passages, oil supply, and oil drain back passages. The tops of the cylinders are integral with the deck.

What is the difference between EJ254 and EJ255?

In 1998 they started production of EJ254 engine which used DOHC heads. It is a direct successor of EJ25D and refers to Phase 2. EJ254 motor used variable valve timing system AVCS on intake camshafts. Subaru EJ255 engine was applied for Forester, Impreza WRX and Legacy (2004-2005).

Is a fully closed deck engine right for You?

If you’re after a robust block to handle high power applications reliably and consistently, a fully closed deck engine case is the way to go. There’s nothing new about closed-decking. Subaru released some early turbo models assembled with a fully closed deck EJ20 engine from factory.

How many kilowatts can an ads closed deck support?

ADS/Cosworth race engine packages with ADS closed-deck designs can easily support 550 kilowatts to reliably produce highly competitive strip, rally and track times. Why ADS Subaru closed deck?

What is the capacity of an EJ25 Phase 1 engine?

The rod length remained the same 130.5 mm, and piston compression height decreased to 30.7 mm. Due to all this it was possible to get 2.5 liters capacity. The first variant of EJ25 Phase 1 was called EJ25D and it used DOHC cylinder heads with 4 valves on the cylinder.
