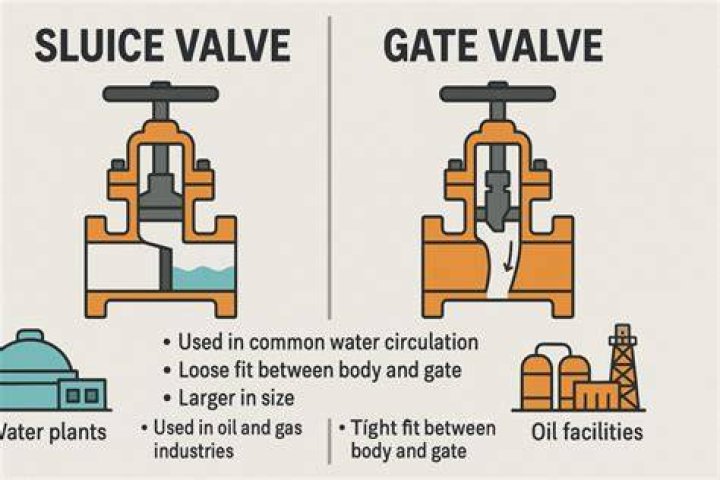

A gate valve, also known as a sluice valve, is a valve that opens by lifting a barrier (gate) out of the path of the fluid. Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened.
What is the purpose of sluice valve?
A large valve in which a rectangular or circular gate slides across the opening. It has been used in oil tankers to permit gravity flow from tank to tank, with the valve being operated from the weather deck.
What is a sluice valve on a water main?
SV are installed to control the flow of water through a straight pipe and as a shut off valve to isolate the supply. This involves ‘re-packing’ the valve to re seal it. Re-packing is completed with or without excavating, depending on how much room is around the valve.
What is the difference between gate and valve?
The main difference between ball valves and gate valves While gate valves open by lifting a round or rectangular gate out of the path of the fluid, ball valves have a stem and a ball that turn horizontally. This is why ball valves are often referred to as a rotational valve.
Why is sluice valve or Gate Valve provided in pipes?
Sluice valve or Gate Valve: These valves are used to regulate the flow of water in the pipe system. It is provided to control the flow of water in the distribution system at street corners and where the pipelines intersect.
When would you use a Gate Valve?
Gate valves are used when a straight-line flow of fluid and minimum flow restriction are needed. Gate valves use a sliding plate within the valve body to stop, limit, or permit full flow of fluids through the valve. The gate is usually wedge-shaped.
When would you use a gate valve?
Why is sluice valve or gate valve provided in pipes?
Can I replace a gate valve with a ball valve?
If you already have a gate valve installed and have to replace it, you can certainly replace it with a ball valve. You will need a torch to heat up the parts and remove them. Turn the water off and drain it from the pipe and valve. You will want to open the valve as well.
How does a sluice valve work?
How Does a Sluice Valve Work? The sluice gate valve is controlled by a lifting gate or wedge, so that flow of water can move without obstruction. The top end of the stem has a hand-operated wheel or a motor that raises and lowers the doors, and the lower end has a circular or wedge gate to obstruct water flow.
Does a gate valve reduce pressure?
Gate valve When the gate is fully drawn up into the valve, it retracts entirely, allowing the water to flow through without any reduction in pressure. Like ball valves, gate valves should only be used to open or close the flow of fluids.
Are gate valves any good?
Gate valves and ball valves are the most commonly used flow control valves in the market. They are generally used to control the flow of liquid and gases….Advantages and Disadvantages.
| Ball valve | Gate valve | |
|---|---|---|
| Durability | Durable and less prone to damage | Valve stem can be prone to corrosion making the valve less durable. |
What does sluice valve mean?
Sluice Valves (SV) SV are installed to control the flow of water through a straight pipe and as a shut off valve to isolate the supply. M & S are able to provide a tracing and mapping service and advise where valves should be installed.
What are the components of a gate valve?
Gate valves are typically constructed from cast iron, ductile iron, cast carbon steel, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are typically used in ultra-high vacuum chambers to isolate regions of the chamber.
Is a gate valve an isolation valve?
Gate valve is normally used for isolation application where only fully close or fully open position is required. this valve is suitable where frequent opening and closing is required. the gate fully retracts in the bonnet. so, the pressure drops across the gate is less.
What type of valve disc for gate valve?
There are two basic types of gate valves Double Disc Type Gate Valves have parallel seats against which the wedge is driven when the gate is closes. Wedge Type Gate Valves have a disc that is in the shape of a wedge that seats against two inclined seats.
