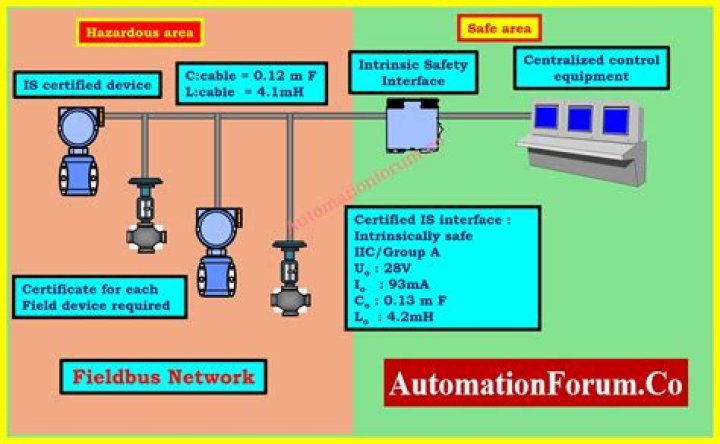

It was developed by PTB (the German Federal Standards Laboratory) and confirms that a communication network is intrinsically safe if the components deployed (i.e. field devices, cables, segment couplers, and bus terminators) comply with predefined voltage, current, power, inductivity, and capacitance specifications.
How many devices we can connect with Profibus PA?
We can have a total of 126 masters and devices on a PROFIBUS network, including an Engineering tool. To achieve that number, the network must have a minimum of four RS-485 repeaters.
How do you terminate a PROFIBUS cable?
Termination Of Profibus Cables A Profibus termination is done by inserting a 220 Ω resistor in each end of the Profibus line. So, you insert a 220 Ω resistor in the first and one in the last station. The reason for using a 220 Ω resistor is that the two 220 Ω resistors are connected parallel to each other.
What is DP and PA?
There are two flavors of PROFIBUS: PROFIBUS Decentralized Peripherals (DP) and Process Automation (PA). Each type targets different applications. PROFIBUS PA is used in process automation. PROFIBUS DP and PA are widely used in industrial automation.
What is Profibus cable?
Profibus cables are automation cabling for industrial fieldbus fast-connect-type systems, particularly developed for process applications. They offer excellent electrical transmission performance for their respective Decentralised Peripherals (DP) and Process Automation (PA) applications.
How many nodes can be connected to Profinet?
But on both Profinet interfaces you can setup as many as 256 standard Profinet IO devices (up to 1000 if you are using proxys for Profibus, ASi…).
Is Profibus Serial communication?
When we talk about PROFIBUS, we are talking about a traditional and well-known digital communication protocol that has been implemented in different industries and applications. This protocol is based on serial communication and has brought a lot of benefits to the industry.
