Raise the length of each of the H-beam’s flanges to the power of 3. For example, if each flange is 6 inches long: 6^3 = 216 in^3. Multiply this answer by the width of a flange. For example, if each flange is 2 inches thick: 216 × 2 = 512 in^4.

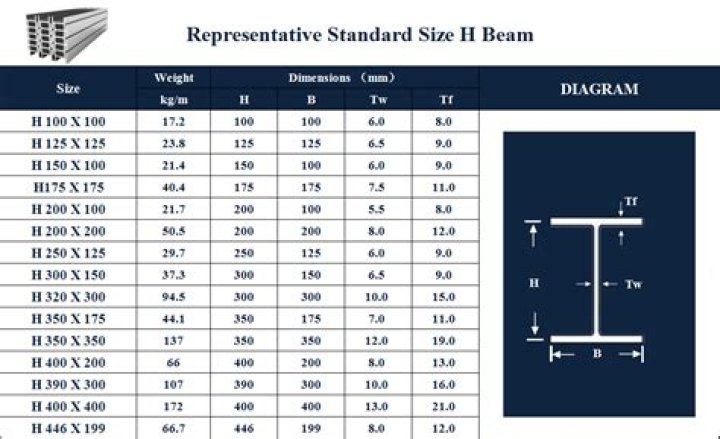

Is standard H beam sizes?
H-beams are widely used in the construction industry and are available in a variety of standard sizes. H-beams may be used both as beams and as columns. Gunung Garuda’s hot rolled H-Beam comes with standard size range from 100×100 up to 350×350.
What size is a W10x22 steel beam?
Wide Flange Beam Specifications Chart
| SIZE | LBS/FT | DEPTH |
|---|---|---|
| W10x22 | 22 | 10.17 |
| W10x26 | 26 | 10.33 |
| W10x30 | 30 | 10.47 |
| W10x33 | 33 | 9.73 |
How do you find the area of an H beam?
The cross-sectional area is the breadth times the depth of the structure. For example, if you have a rectangular beam spans 6m with 450mm X 600mm beam size, then the length of the beam will be 6000mm and the cross-sectional area will be 450X600 = 270000 mm2.
How do you calculate H beam volume?
Calculating Volume and Weight First, multiply the thickness times height times length for the central part of the I-beam to get its volume in cubic inches.
What size is a W8 beam?
Wide Flange Beams – Misc Shapes
| Size & Weight Per Foot | A Depth In Inches |
|---|---|
| W8 x 48 | 8.50 |
| W8 x 58 | 8.75 |
| W8 x 67 | 9.00 |
| W10 x 12 | 9.87 |
What’s stronger H beam or I beam?
An H beam has a thicker central web, which means that it is generally stronger. An I beam generally has a thinner central web, which means that it is often not able to receive as much force as an H beam.
