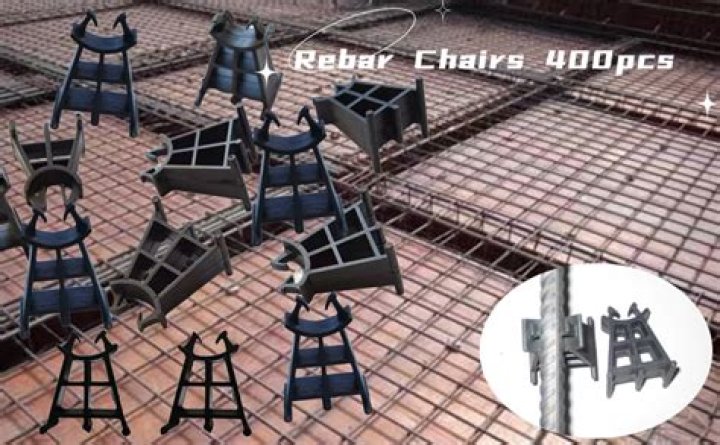

Standard Rebar Chairs The most common type of chair simply suspends the rebar off the ground so that it becomes fully embedded in the concrete as it is poured. They are often used on foundation footings, concrete slabs, and other flatwork.
Why do we put chair in slab?
Why chair bars provided in footing and Slab? 5) chair bar provided in footing and slab reduce the chance of collapsing and touching of upper cage reinforcement and lower cage reinforcement to one another and reduce the failure of compression and tension zone in concrete structure.
How far apart should rebar chairs be placed?
Rebar support chairs should be installed by laborers who have experience with steel reinforcement placement. The maximum spacing of chairs should be 48 inches.
What are chairs in concrete?
Rebar chairs are specially designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete. Rebars are laid out in a crisscross grid pattern and are locked together with the rebar chairs before the fresh concrete is poured over them.
How far should rebar be from the surface?
For welded wire reinforcement, the Wire Reinforcement Institute recommends steel placement 2 inches below the surface or within the upper third of the slab thickness, whichever is closer to the surface.
What is a rebar chair?
rebar high chair is designed to hold rebar in place during concrete applications. These plastic chairs are designed for the rebar rods to snap easily into place for a firm hold. The chairs have a round base which provides stability during the set up and concrete pour.
What’s the average height of a chair?
Your standard chair seat is about 18” off of the ground. Standard chairs tend to have taller backs than counter or bar height stools. You can find these chairs with arms – called arm chairs, or without arms – referred to as side chairs.
Does rebar keep concrete from cracking?
Steel reinforcing bars and welded wire reinforcement will not prevent cracking. Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.
Does rebar have to be tied together?
Ideally, every intersection of the rebar has to be tied for maximum support. The ties do not actually make the structure strong. They prevent the rebars from getting displaced when the concrete is being poured. The tie wires should be placed at the right depth from the surface so that the rebar does not rust.
What are chairs in reinforcement?
Chair reinforcement or simply chair bars are small structural elements used to properly place reinforcement bars in position and maintain the proper space between the top and bottom reinforcements. Chair bars are mainly used in slab and footing. It is one of the most important parts of the raft foundations.
