Optical fibers typically include a core surrounded by a transparent cladding material with a lower index of refraction. Light is kept in the core by the phenomenon of total internal reflection which causes the fiber to act as a waveguide.
Why is refractive index important in optical fiber?
Optical polymers are very specialized materials. The higher the refractive index the slower the light travels, which causes a correspondingly increased change in the direction of the light within the material. …
How does refraction relate to Fibre optics?

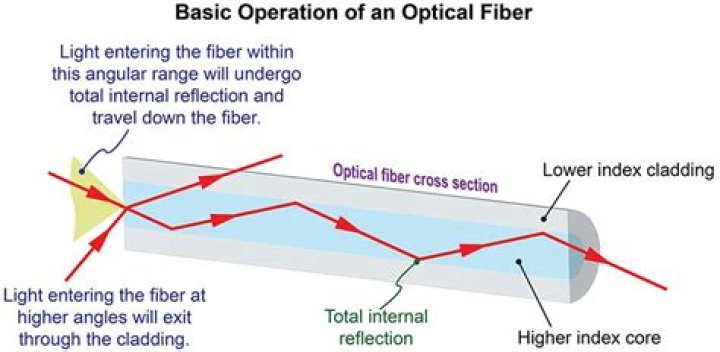

In an optical fiber, the light travels through the core (m1, high index of refraction) by constantly reflecting from the cladding (m2, lower index of refraction) because the angle of the light is always greater than the critical angle.
What is relative refractive index of optical fiber?
A measure of the relative difference in refractive index between two optical materials. Most commonly used in fiber optics where the refractive index contrast, D, is given as follows: where n1 equals the index of the core material and n2 equals the index of the cladding.
What is fiber optics refraction?
When a ray of light light enters a dense medium, such as plastic or glass, it is refracted, or directed in a different direction than its original path. Fiber optics is the use of transparent, flexible fiber to transmit light from one end to the other.
How does the refractive index vary in graded index Fibre?
How does the refractive index vary in Graded Index fibre? Explanation: The refractive index of the core is maximum along the fibre axis and it gradually decreases. Here the refractive index varies radially from the axis of the fibre. Hence it is called graded index fibre.
Is a high refractive index good?
The higher the number on the index, the slower light travels through the medium, the more the light is bent, and ultimately – the more efficient the refraction is….What is the refractive index?
| Refractive Index (Lens Material Chart) | |
|---|---|
| High Index Lens | 1.640 |
| Optima Hyper Index | 1.74 |
What is relative refractive index?
The ratio of the speed of light in a vacuum to the speed of monochromatic light in the substance of interest. That ratio should be called a relative refractive index. The ratio of the first value to the second one is about the relative refractive index of the glass.
What is a good light level for fiber?
Single mode fiber is used to transmit 1270 – 1650 nm light over long distances and high data rates, most commonly at 1310 and 1550 nm.
How does the refractive index vary?
The refractive index varies with wavelength linearly because different wavelengths interfere to different extents with the atoms of the medium. It is important to use monochromatic light to prevent dispersion of light into different colours. The chosen wavelength should not be absorbed by the medium.
